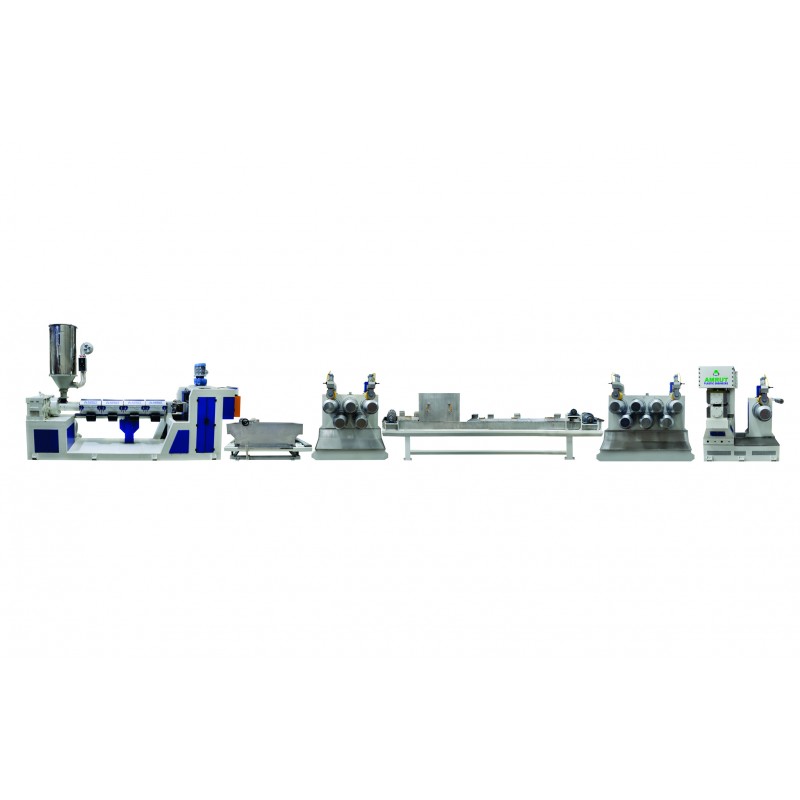

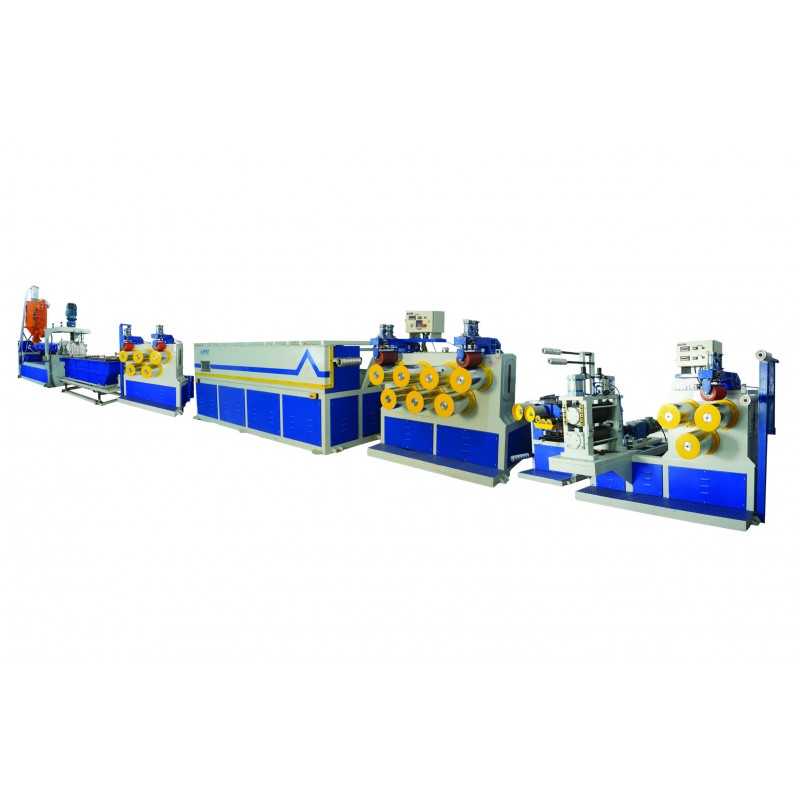

AMRUT PP/PET strap extrusion line is a type production line used for manufacturing polypropylene (PP)/PET straps, which are commonly used in packaging and bundling application. The AMRUT Strap extrusion line is designed to efficiently and consistently produce high-quality Straps.
Our strap extrusion line is highly automated and can be operated by a single operator. it offers high production speeds, precise control over strap dimensions and properties and consistent quality output. It is suitable for both small-scale and large-scale production of straps.
Technical Specification
Semi / Manual ABA (Coating) Strap Production Line :
|
Plant Model |
Screw Size (mm) |
Production Capacity Kg./Hr. (Depends on material) |
Electric Power Requirement (Kw) |
Area Requirement For Production Line(Feet) |
||
| L | W | H | ||||
| APE-SCL 70 | 70 | 65 to 75 | 65 | 70 | 20 | 10 |
| APE-SCL 80 | 80 | 80 to 95 | 75 | 80 | 20 | 10 |
| APE-SCL 90 | 90 | 100 to 110 | 95 | 90 | 25 | 12 |
Note : Also Available Groove Feed Extruders Models for higher production line. Production capacity depends on raw material density & finish good size. Automatic PLC touch screen system can be provided as per requirement.
1992 - Two Line Heat Sealing Extrusion Line
1994 - Two Line Coating PP Strap Line
1999 - Two Line Fully Auto Strap Line
2006 - Four Line Fully Auto Strap Line
2012 - Four Line Coating Strap Extrusion Line
2015 - Six Line Coating Strap Line
2018 - Six Line Fully Auto Strap Line
2023 - Eight Line Fully Auto Strap Line & Continue
Amrut Plastic Engineers is a leading manufacturer and exporter of plastic packaging solutions based in India. With over 27 years of experience, we specialize in designing and producing high-quality Extrusion Lines, Post Extrusion & Auxiliaries which are used in various industries for Packing in such as Plastic, Ceramic, Textile, Agriculture, food and beverages, and more.
